Ragley Needle Mill

Ragley needle mill, Alcester. 1983

IMAGE LOCATION: (Warwickshire Museums. Photographic Collections.)

Reference: C, 4883, img: 7884

This image is subject to copyright restrictions. Please see our copyright statement for further details.

Ragley Needle Mill, March 1973 showing the mill buildings and tail race

June Booth

Ragley Needle Mill, March 1973. The iron breast-shot waterwheel, 13ft 6in x 5ft 6in, made by Ball & Horton, Stratford upon Avon.

June Booth

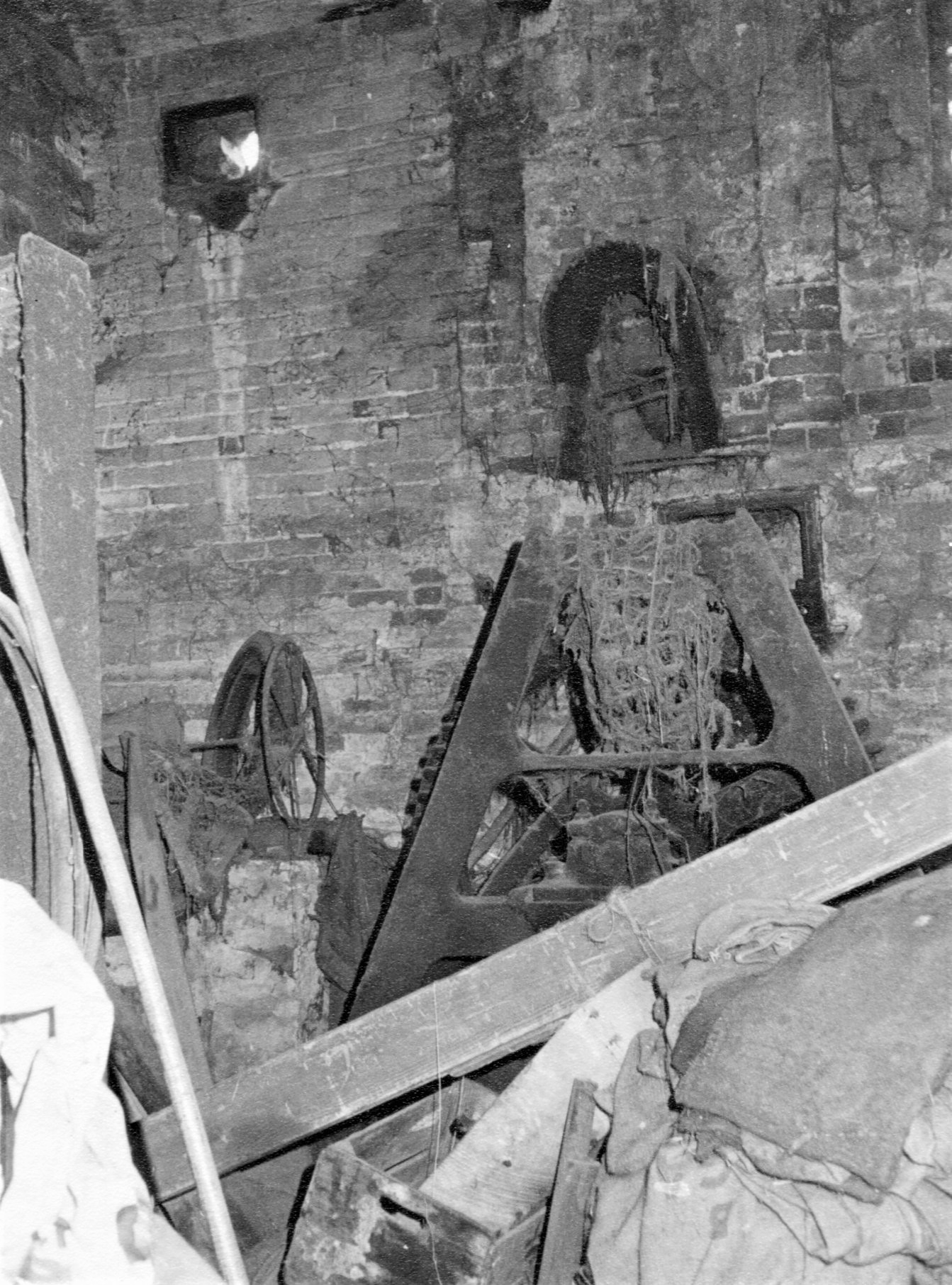

Ragley Needle Mill, March 1973. The iron stand supporting the inner end of the waterwheel shaft and iron spur gear.

June Booth

Ragley needle Mill, March 1973. Machinery last in use for producing animal feed.

June Booth

Description of this historic site

Ragley Needle Mill, a watermill which was in use from the Medieval period as a corn mill and converted to a needle mill during the Imperial period. It is situated east of Birmingham Road, Alcester.

Can you help?

Please upload a photograph of this historic site.

Notes about this historic site

1 A mill at Alcester is recorded in 1241, when it was granted to the monks of Alcester, and in 1545. Details of ownership exist from 1872. It was used for needle manufacture until the 1920s, and the buildings have since been converted for use as cattle sheds and a dwelling. The mill buildings are of brick, dating from the C18 and C19. The oldest part, now used as a cottage, was probably the original needle mill. A dry tail race leads from the front of this building. Most of the buildings appear to have been added in the mid C19, when the site of the waterwheel was probably changed. The wheel remains in situ; it is a breast-shot wheel, 4.1m by 1.7m, with two driving gears, but the machinery that these operated has long since been removed. The head race is partly blocked but the tail race is clear.
2 This former corn mill was converted to needle making soon after 1805. The mill and its associated buildings survive in adapted form as three cottages, the one named ‘The Old Watermill’ comprising the former mill.
3 Photos.
4 Plans.
5 Descriptive account.
